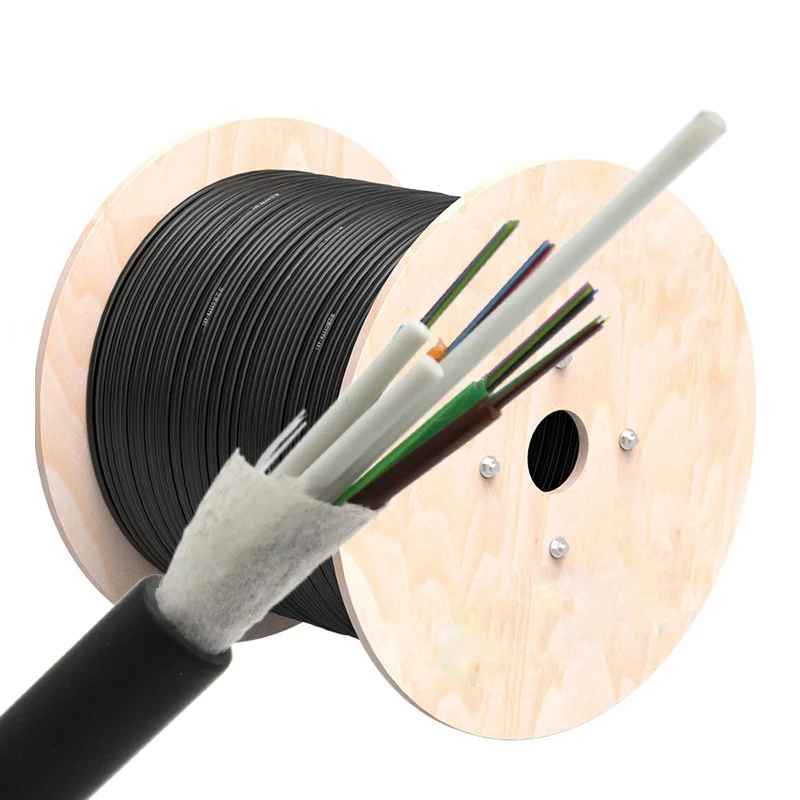

Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty

Product Categories

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : JQ

Model Number : gyfty

Certification : ISO9001/CE/RoHS

Place of Origin : CHINA

MOQ : 3KM

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200KM Per day

Delivery Time : 5 days

Packaging Details : iron drum

Contact Now

2.Buffer Tube: PBT plastic material, containing 6 fibers and filled with a suitable water tightness compound.

3.Filler Elements: nature PP plastic rods, when needed.

4.Stranding: loose tubes (and fillers), SZ stranded around the CSM.

5.Longitudinal Water Tightness: dry core with water swellable elements.

6.Glass yarns: anti-rodent

7.Ripcord(s): 1 polyester ripcord under sheath.

8.Outer Sheath: PE

Fiber Parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
Mode field diameter	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

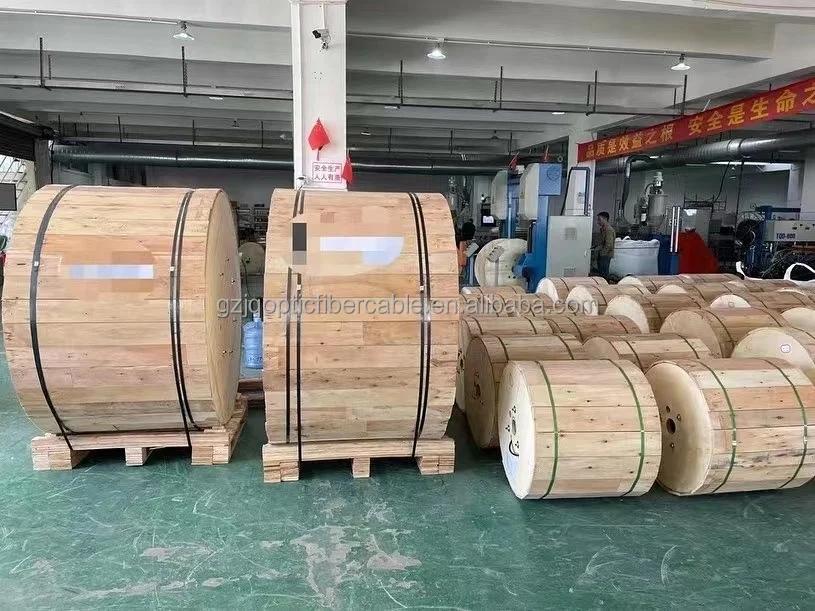

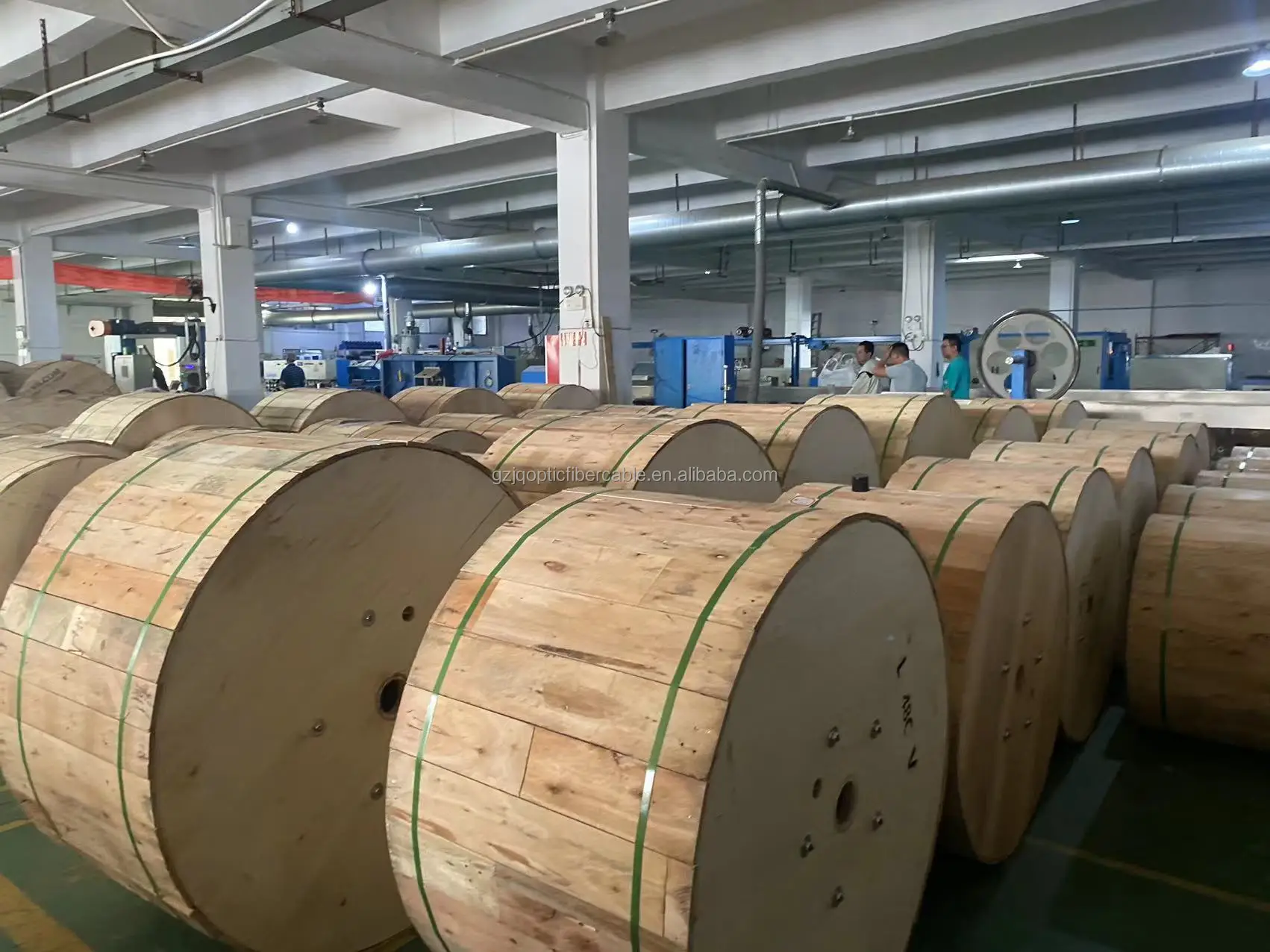

Packing & Delivery

Lead time

Order quantity(km)	1-100	Above 100
Earliest time(day)	7	Negotiable
