ADSS Optical Cable 4000m/Roll Self Supporting 96 Core Fiber Optic Cable
Description of ADSS Cable
ADSS Completely metal-free design with fiber counts from 12 to 288 fibers, suitable for deployment near high-voltage power lines in long spans. These cables can be installed in short spans between aerial poles without a separate messenger upon which to attach the optical cable. Also available in mid and long-length spans.
Application of ADSS Cable
● Electric utility transmission and distribution power lines – Typically framed under conductors
● Enterprise OSP networks
● Fiber-to-the-X networks
● Aerial networking system
Cable printing : OEM Service
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
| Structure parameters: |
| Fiber count | Structure | Fibers per tube | Loose tube diameter
(mm) | CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable weight
(kg/km) |
| 4 | 1+5 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 80 |
| 6 | 1+5 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 8 | 1+5 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 12 | 1+5 | 12 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 24 | 1+5 | 12 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 36 | 1+5 | 12 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 48 | 1+5 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 97 |
| 72 | 1+5 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 98 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7±0.1 | 12.5±0.5 | 122 |
Packaging
4km per plywood drum or customized
Lead time:
Order quantity 100-300km 5-7days More 300km Negotiable
Contact us
Email: lillian@gzjqofc.com
Whatsapp/Tel: 86-18122384553
Web: www.fiber-opticalcable.com
Product Tags:
|
|

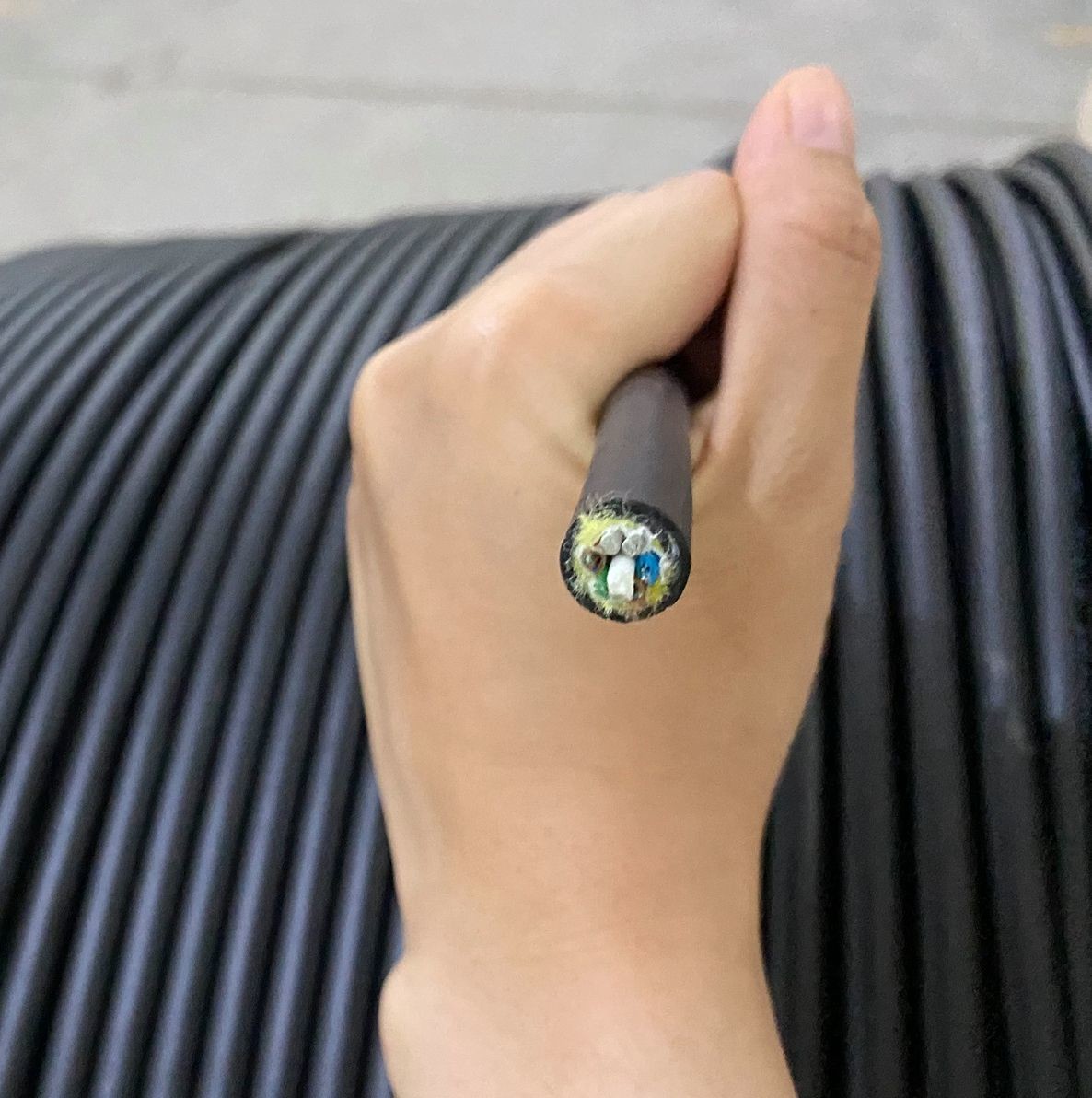

ADSS Optical Cable 4000m / Roll Self Supporting 96 Core Fiber Optic Cable Images
|
