ADSS Mini Span 12 24 72 96 144 Core Non Metallic Aramid Yarn Fiber Optic Cable

Name: ADSS Mini Span 12 24 72 96 144 Core Non Metallic Aramid Yarn Fiber Optic Cable
Brand: jiqian/haiso
Price: 1 USD

Wholesale ADSS Mini Span 12 24 72 96 144 Core Non Metallic Aramid Yarn Fiber Optic Cable from china suppliers

Brand Name : jiqian/haiso

Model Number : ADSS 12core 24core 48core 72core

Certification : ISO9001/CE

Place of Origin : CHINA

MOQ : 1km

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100km per Month

Delivery Time : 2-4days

Packaging Details : wooden drum/customized

Fiber type : G652D/G657A1

Application : Aerial/duct

Number of conductors : 12core

Structure : Stranded loose tube

Operating temperature : -40 ~ +60 C

central strength member : FRP

Span : 80m/100m/120M/150M

Contact Now

ADSS Mini Span 12 24 72 96 144 Core Non-metallic Aramid Yarn Fiber Optic Cable

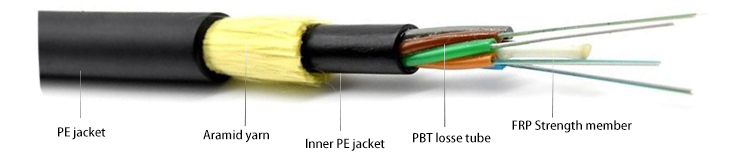

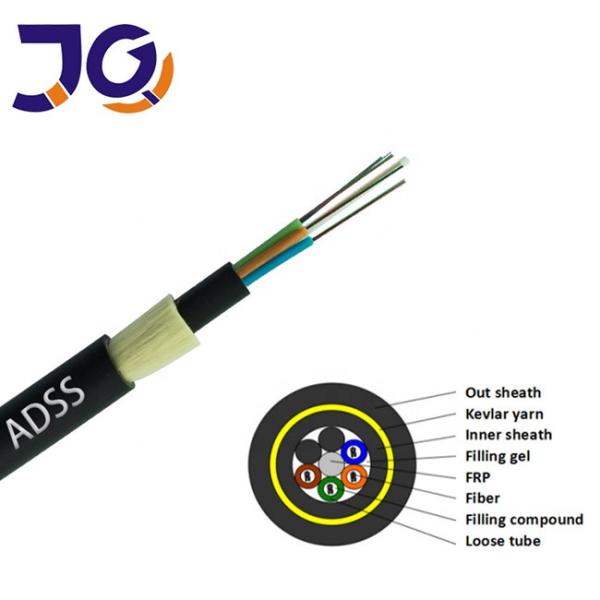

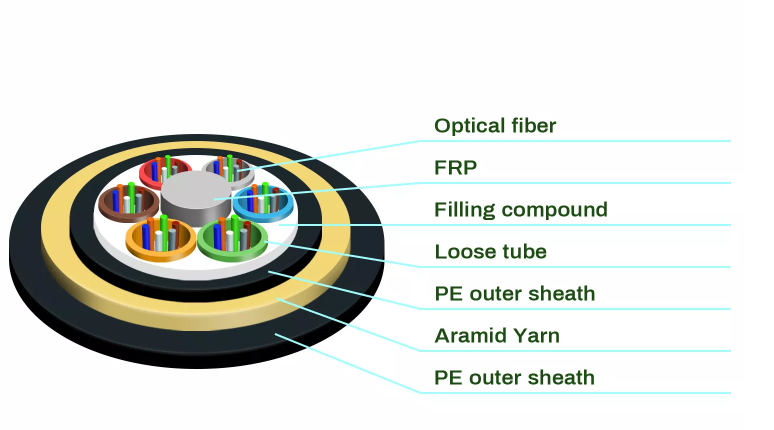

ADSS cable is loose tube stranded.Fibers,250μm,are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound,it is covered with thin PE(polyethylene)inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(anti-tracking)outer sheath.

Applications:

1 .Suitable for network in high electromagnetic interfering places.

Suitable for aerial.

2. Long distance and local area network communication.

Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span (NESC Standard,m)
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
11	110	120	1.0	2.5	8	3.0	6.6	2.1	120	80	100	80
11.5	115	125	1.5	4	10	4.5	7.3	1.8	180	120	150	120
12	120	130	2.5	6	15	7.5	8.3	1.5	250	150	290	150

Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span (NESC Standard,m)
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	60	32.2	19.1	0.1	750	530	750	510

ADSS Mini Span 12 24 72 96 144 Core Non Metallic Aramid Yarn Fiber Optic Cable

Loading:

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.

7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
