Double Jacket Single Mode G652d Double Armoured Fiber Optic Cable DJDA
Mechanical specification
| Items | Descriptions |
| 4C | 12C | 24C | 48C | 96C |
| Central Strength Member | Material | Fiber Reinforced Plastic (FRP) / Steel |
| Diameter | 1.9 |
| Loose Tube | Material | PBT |
| Diameter | nominal: 1.9-2.2 mm outside |
| Construction | S-Z Stranded, filled with filling compound |
| Quantity (including Filler Rod) | 6 | 8 |
| Fiber Count Per Tube | 4 | 4 | 4 | 12 | 12 |
| Number of Filler Rod | 5 | 3 | 0 | 2 | 0 |
| Inner Sheath | Material | Polyethylene (PE) / HDPE |
| Thickness (mm) | minimum: 1.0 |
| Armoring | Material | 1st Layer: Corrugated steel tape |
| 2nd Layer: Corrugated steel tape *Applicable for DJDA only |
| Thickness (mm) | Minimum: 0.15 mm steel tape |
| Minimum: 0.05 mm coating (each side) |
| Outer Sheath | Material | Polyethylene (PE) / HDPE |
| Thickness (mm) | minimum: 1.8 |
| Messenger Wire | Diameter | 7x wire stranded |
| Wire Diameter (mm) | 1.2 |
| Cable Diameter W x H (mm) | (12.0 ~ 14.0) * (21.0 ~ 23.0) | (14.0 ~ 17.0) * (22.0 ~ 24.0) |
| Cable Weight(kg/km) | DJDA | 260 ~ 300 | 300 ~ 357 |
| Bending Radius | Dynamic | ≤ 20W |
| Static | ≤ 10W |

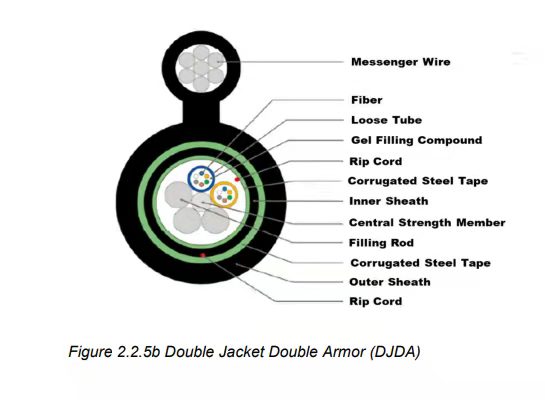

The structure of GYTC8S53(DJDA) cable is to put 250µm optical fiber into loose tube made of high modulus material, which is filled with waterproof compound.
The cable core is wrapped in a plastic-coated steel and integrated with the steel strand into an 8-figure polyethylene sheath.
Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.
Double jacket and double armoured.
Cable Performance
| Item | Parameters |
| Fiber Count | 24 |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT |
| Color | Blue,Orange,Green,Brown |
| Filler | Material | PE |
| Color | Black |
| Central Strength Member | Dimension | 1.6mm±0.05mm |
| Material | Phosphating steel wire |
| Armoured | Material | Plastic coated steel strip |
| Strength Member | Dimension | 7*1.0mm |
| Material | Stranding steel wire |
| Outer jacket | Material | PE |
| Color | Black |
There are twelve fiber color code.They are A grade fiber.

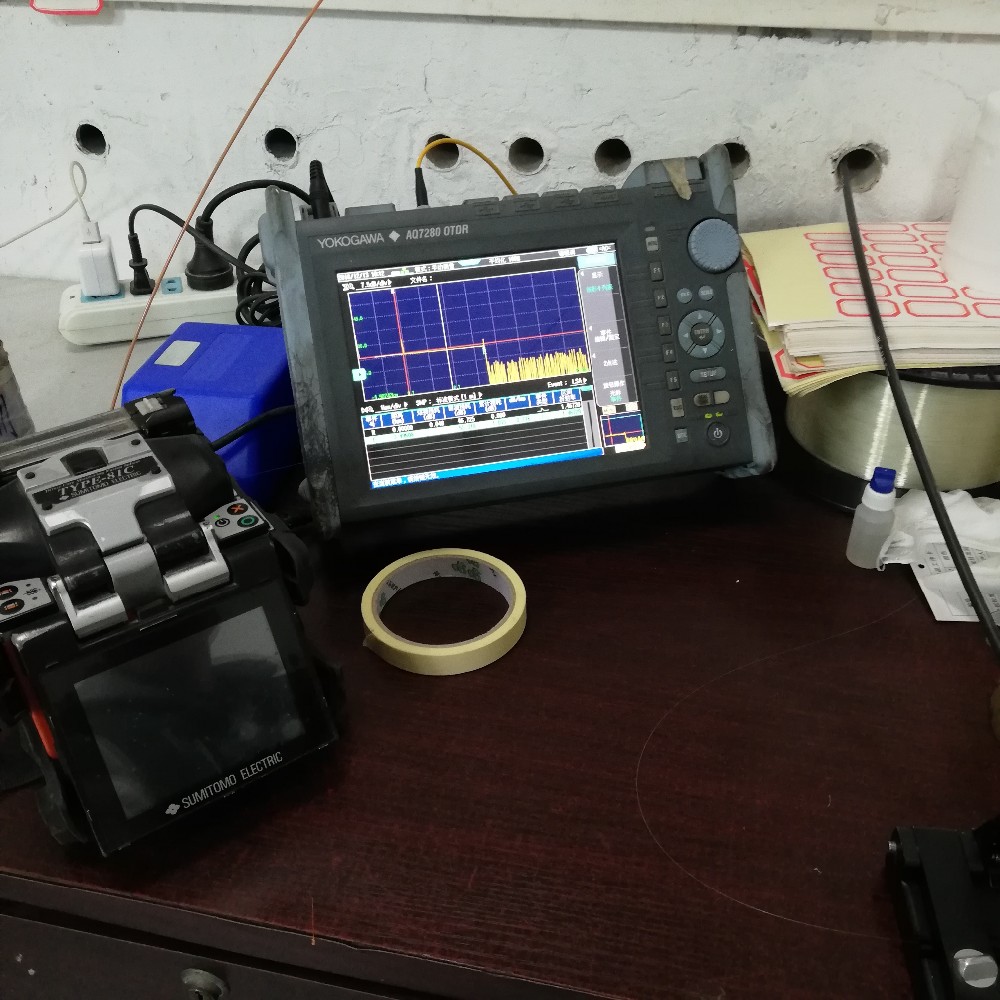

All products will have been strictly quality checked in house before packing.
All products will be well packed before shipment.
We are fiber cable manufacturer. We have a factory.
We have rich experience in foreign trade.
Give us a chance to server you, saving your time and money.
Contact me!!! Whatsapp & Wechat: +8618122383351
FQA
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
