2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw 1km Price g652d Single Mode 12 Core Fiber Optic Cable
Fiber parameter
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Optical Charateristics
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
| Attenuation (+20X) | 850 nm | | | ≤3.0 dB/km | ≤3.2 dB/km |
| 1300 nm | | | ≤1.0 dB/km | ≤1.2 dB/km |
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | | |
| Bandwidth | 850 nm | | | ≥500 MHz-km | ≥200 Mhz-km |
| 1300 nm | | | ≥1000 MHz-km | ≥600 Mhz-km |
| Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
| Cable Cut-off Wavelength cc | ≤1260 nm | ≤1450 nm | | |
Cable bending radius: 10 x cable diameter (static)
20 x cable diameter (dynamic)
Application temperature range
| Operating temperature range | -40℃ to +60℃ |
| Storage / Transport temperature range | -40℃ to +60℃ |
| Installation temperature range | -20℃ to +60℃
|

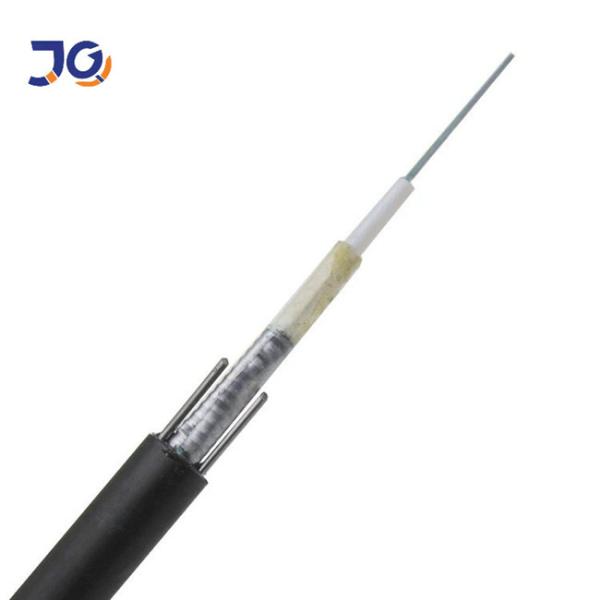

GYXTW copper armored cable is an outdoor communication optical cable of metal strength member of the central tube jelly-filled structure with embedding steel-polyethylene laminated sheath, consisting of the central loose tube, two parallel steel wire strength members, and sheath.
Cable Structure

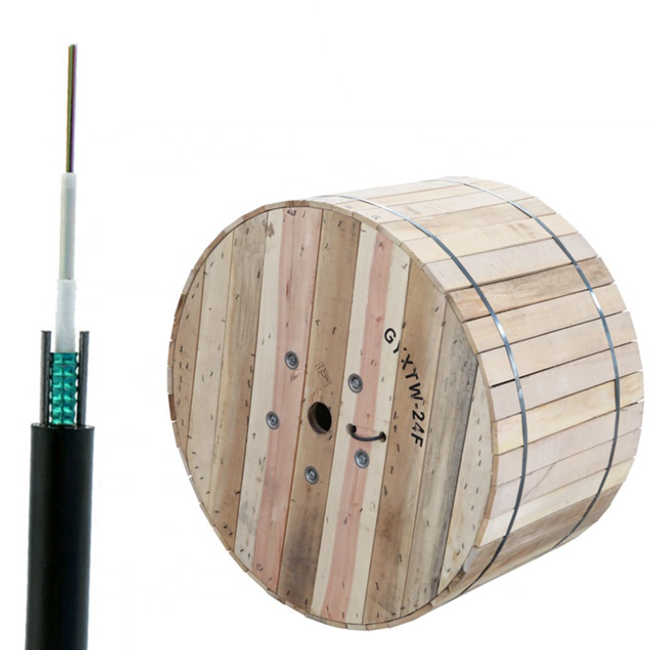

Packing
Each single cable length been wound on an iron stand-wooden composite or pure wooden drum.
Standard drum length is 2000m ±2%, or it can be delivered as customer requirement but not longer than
6000m with a tolerance.
Covered by plastic buffer sheet.
Sealed by strong wooden battens.
At least 1m of cable inner end should be reserved for testing.
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
