Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0±0.2 | 65 |
| 24 | 1+5 | 6 | 1.9±0.3 | 1.4/1.4 | 1.6 | 9.2±0.2 | 68 |
| 36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.2±0.2 | 68 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.2±0.2 | 68 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6 | 80 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.2/3.5 | 1.6 | 12.0 | 103 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.2/6.4 | 1.8 | 15.0 | 180 |
Mechanical and Environmental Characteristics
| Item | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 1000 |
| Crush(Short Term) | N/10cm | 3000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min.Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -40～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
| Repeating bending | Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
| Torsion | Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage. |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. |
We are Factory directly sale,
so our product is of high quality and in a considerable price

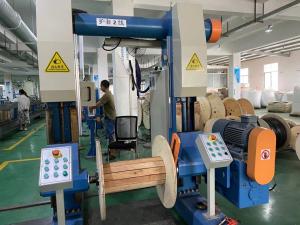

Welcome to visit our factory and send inquiry to us at anytime!
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
