Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

  • 1
  • 2
  • 3

Brand Name : JQ/OEM

Model Number : ADSS-24B1

Certification : ISO9001

Place of Origin : Guangzhou

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Delivery Time : 5-8 work days

Packaging Details : wooden drum

Fiber type : single mode or multi mode

Type : Outdoor Optical Cable Aerial

Fiber count : 2-144 Core

Color : Black,Customized

Length : 2km or customized length

Jacket material : PE

Name : ADSS Optical Fiber Cable

Strength member : FRP

Application : Aerial

Operating temperature : -40 ~ +60 C

Contact Now

Adss Cable Kevlar Yarn 100m Span 24 Core Single Multi Mode Outdoor Fiber Optic Cable

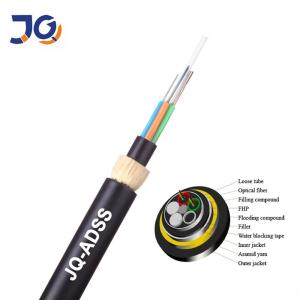

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

Features

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

Technical Data

Span : 100m

under 110kv

24core

structural

parameter

Central strength components : FRP

Diameter : 1.5mm

Loose tube (jelly filled )

Outer diameter :1.8mm

Inner sheath PE

Thickness : 0.9mm

outer sheath PE

Thickness :1.8mm

Technical

parameter

outer diameter of Cable

11mm

cable cross-sectional area

95.03 mm2

Fiber model

G.652D

Weight of cable

95kg/km

Rated tensile strength (RTS)

10 kn

Minmum allowed tension(MAT)

4kn

EDS

3.2kn

Young's modulus

7.8 kn/mm2

Coefficient of thermal expansion

1.810-6/°C

Cruss resistance

Long term :1100 n/100mm

short term:2200 n/100mm

Permission bent radius

Long term (when running) 220 mm

Short term (when laying) 360 mm

Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable

Adss Kevlar Yarn 24 Core Multimode Fiber Optic Cable
