Self-supporting Fibre To The Home FTTH 1 2 4 cores Fiber Optic Drop Cable

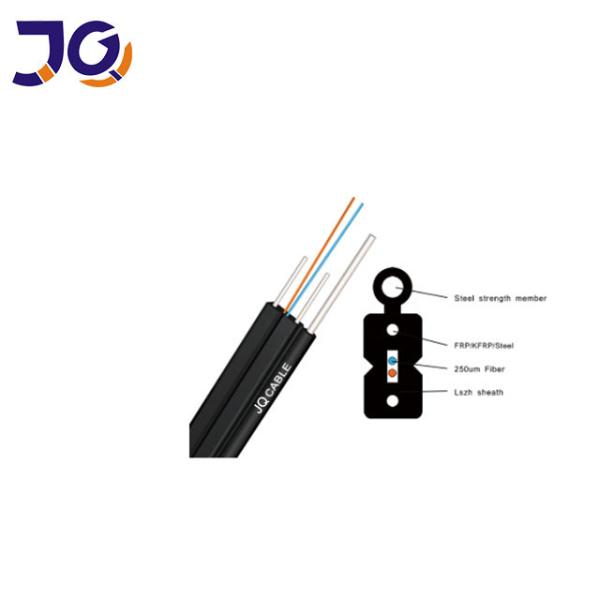

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. it's completed with black or white LSZH sheath.
| Product Model | GJYXCH/GJYXFCH |
| Product Name | Self- supporting metallic strength member optical fiber drop cable |
| size | 5.2×2.2MM |
|
Attenuation index
|
wavelength
| B1.1 B1.3
(G.652)
(DB/KM) | B6a(G.657A)
(DB/KM) | B6b(G.657b)
(DB/KM) |
| 1310 | ≤0.45 | ≤0.45 | ≤0.60 |
| 1550 | ≤0.30 | ≤0.30 | ≤0.50 |
|
Technical parameter
| Model | Fiber
count | Fiber
model | Max.tensile (N)
Long-time/
short-time | Max.squashed force (N)
Long-term/
short time | Max.Bending radius
Long-time/
Short-time |
| GJYXFCH | 4 | B1.1 B1.3 | 300/600 | 1000/2200 | 30/60 |
| B6a | 300/600 | 1000/2200 | 15/30 |
| B6b | 300/600 | 1000/2200 | 10/25 |
| GJYXFCH | 1/2 | B1.1 B1.3 | 300/600 | 1000/2200 | 30/60 |
| B6a | 300/600 | 1000/2200 | 15/30 |
| B6b | 300/600 | 1000/2200 | 10/25 |
| Length type | 500M 1000M 2000M per reel or as your request |
Packing:
Certification:
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
